Panel description - Framing Panel

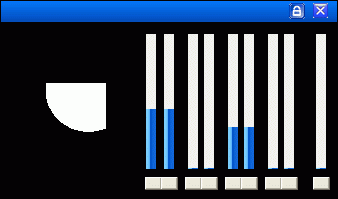

The blade control have 2 faders for each blade controlling the corner of the blade.

The settings can be monitored on the left side images.



The faders are as follows.
Top, Bottom, Right, Left.
And finally the left fader is Rotation control.

For configuration see: Fixture Creator - Framing configuration
