Fixture Creator - Framing configuration


Framing is basically a way to shape the beam.
It is done by moving 4 blade in front of the beam where each blade is controlled by 2 DMX channels.

Framing is enabled by check on the Enable Framing box.

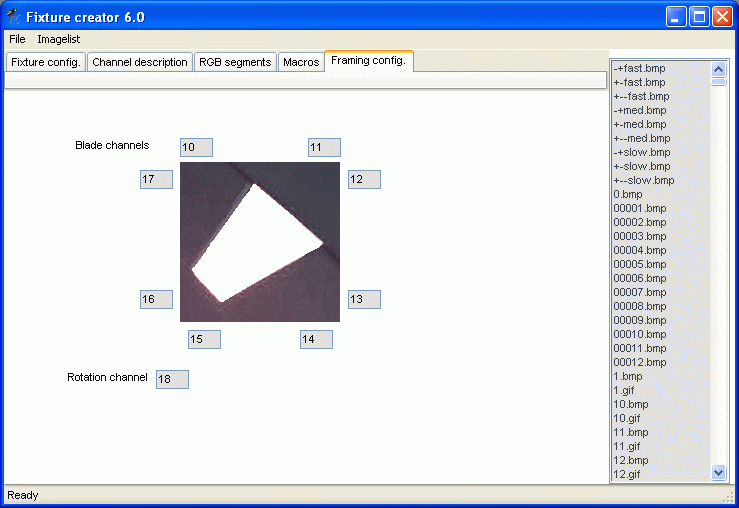

Configuration of the Framing blade control is on the “Framing config” tab.



The control is defined as a position in each corner of the blade. This is the only type of definition that are available at the moment.
Fixture as Martin MAC III performance has a blade definition consisting of Position and Angle for each blade. This is not configurable at the moment.

Additional to the 4×2 position channels a “rotation channel” is available.
