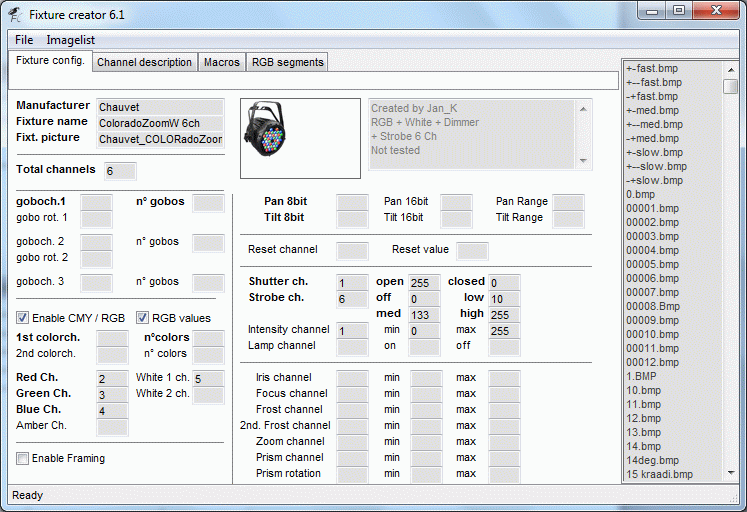

Enter manufacture name “Chauvet”, Fixture name “ColoradoZoomW 6ch” and Select the fixture picture.
Enter basic info in the textbox.
Enter then Total Channel. Here in this mode it is 6.
Check “on” the CMY and some new control boxes get visible.
Check “on” RGB.
And enter the Red, Green and Blue Channel.
Additional the fixture has a white channel.
Fixture Creator has two white channel contols W1 and W2. Here W1 is chosen. There is no difference if the one or the other are used.
Link to Fixture Creator - Color configuration
In this mode an intensity channel is also available this is entered in the Lamp control. And to make a shutter function the intensity channel is also added to Shutter channel where full intensity, DMX value 255, correspond to “Open” and DMX value 0 correspond to “Closed”
The ARC2 + S mode also have a strobe mode. Fixtures with lamps in normally have a mechanical shutter and this is also used to make the strobe effect. In LED fixtures this is not the case and where a strobe normally is turned off by leaving the shutter open or closed, then this LED fixture has an off value on the shutter channel.

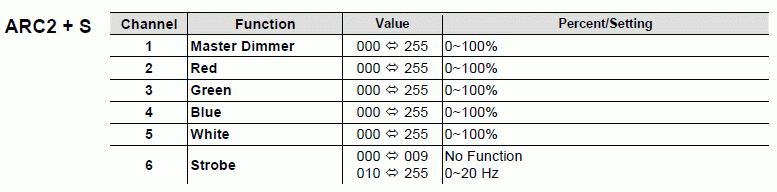

The strobe channel is here 6 and it is flashing with values from 10 to 255.
Fixture Creator - Lamp Configuration

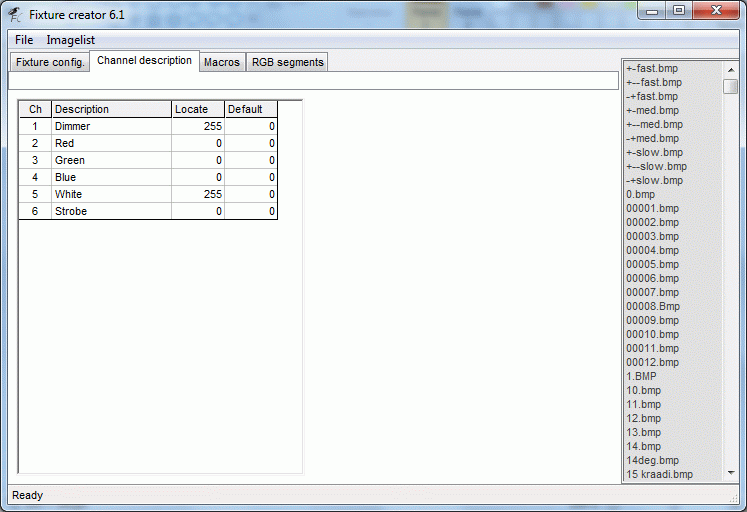

Enter the correct Channel description.
Add the Locate and default values.
See Link Fixture Creator - Channel Description
Save the fixture with a proper name.
See Fixture Creator - File Name Convention
Test the fixture and when it works, export it and upload it to the forum.
