ARC2

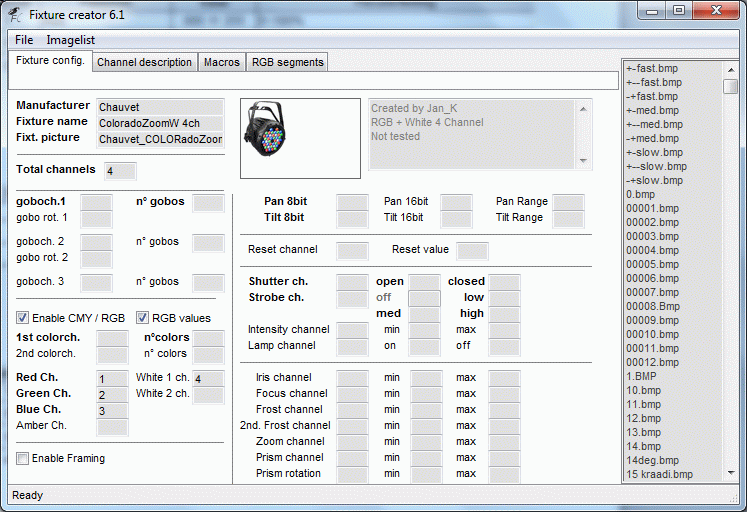

Enter manufacture name “Chauvet”, Fixture name “ColoradoZoomW 4ch” and Select the fixture picture.
Enter basic info in the textbox.

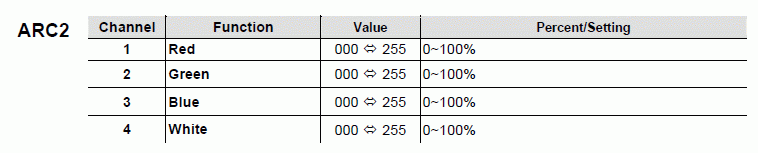

Enter then Total Channel. Here in this mode it is 4.

Check “on” the CMY and some new control boxes get visible.
Check “on” RGB.
And enter the Red, Green and Blue Channel.
Additional the fixture has a white channel.
Fixture Creator has two white channel contols W1 and W2. Here W1 is chosen. There is no difference if the one or the other are used.

Link to Fixture Creator - Color configuration

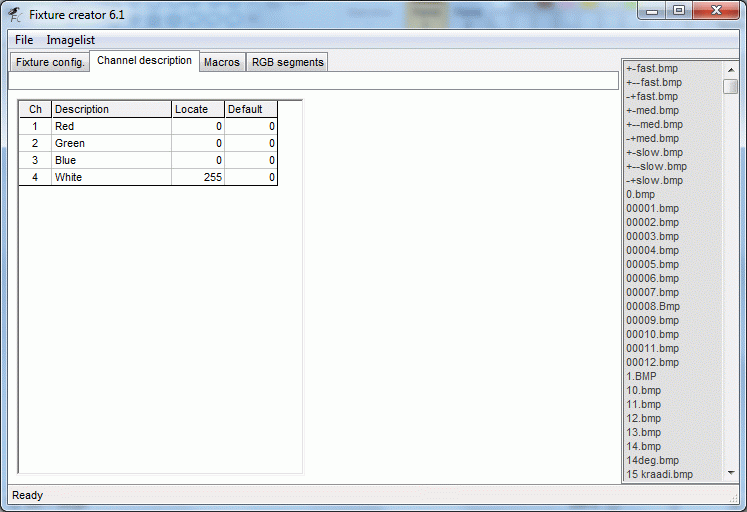

Enter the correct Channel description.
Add the Locate and default values.
See Link Fixture Creator - Channel Description



Save the fixture with a proper name.
See Fixture Creator - File Name Convention

Test the fixture and when it works, export it and upload it to the forum.

http://www.freestylersupport.com/wiki/extrafiles/Chauvet_ColoradoZoomW_4ch.pff

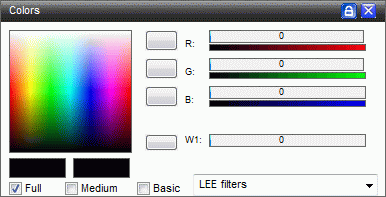

In FreeStyler the will be a color control panel.



Link to Panel Description - Color Panel
