Matrix LedTrix Tutorial


To use the matrix together with LedTrix some setups are to be performed.

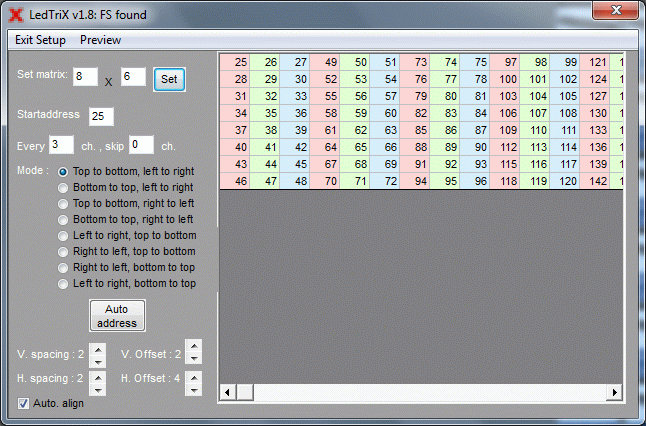

The setup are found under “Plugin” → “LedTrix” → “Setup”.

The Matrix is 8 high and 6 wide. 8 x 6.
Remember to press “Set”

Each fixture is 3 channel so: Every 3 and Skip 0.
Top to bottom, Left to Right.
Auto align: on.

And press “Auto address”



For more detailed Setup info See LedTrix – Setup Window

“Exit Setup”

One thing to say.

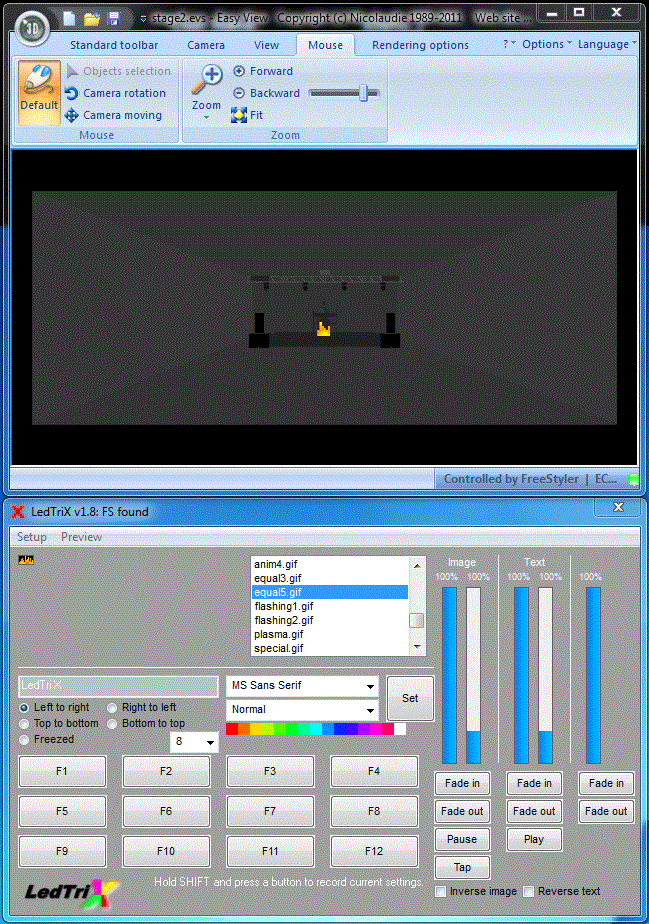

Play with the LedTrix.

See eventually: LedTrix - Main window

Click on some of the animation gif’s.

Get a feeling with the functionality.
