ADJ Electra LED DMX

Post by DaVan »

Hi Guys.

I need a fixture file for this light, so if someone could help that would be great.

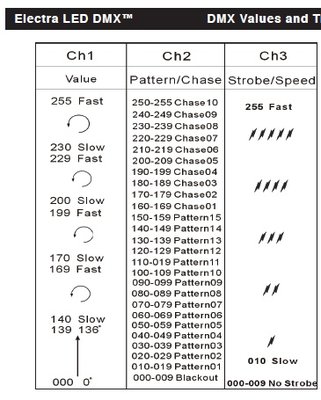

Here is the Describtion from the manual:

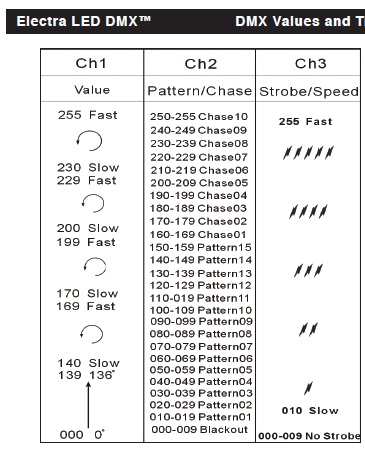

Electra DMX.jpg
Thanks. :fs:
You do not have the required permissions to view the files attached to this post.


User avatar
Mattotone
Android Dev (Moderator)
Posts: 1238
Joined: July 10th, 2007, 5:30 pm
FreeStyler Version: BETA
I Use FreeStyler for: Just for the Fun of it.

Re: ADJ Electra LED DMX

Post by Mattotone »

1. Open fixture creator -> Other
2. Fill in manufacture Name and Fixture Name
3. Select a fixture picture or create your own
4. Total Channels = 3
5. GoboCh1 = 2 n' gobos = 10 (This will be channel 2 chases)
6. Goboch2 = 2 n'Gobos = 15 (this will be for patterns)
7. shuter ch = 2 closed = 0 (blackout)
8. strobe ch = 3 off = 0 low = 63 med = 126 high = 255 (you may need to play with these to get the desired speeds)
9. goboRot1 = 1
10. Channel descriptions -> enter the descriptions from the manual
11.1st gobo wheel. (chases) chase one you would need to enter 160 as the dmx value, then select 1.bmp from the sidelist
chase2. enter 170 and select 2.bmp using the dmx values from the manual for each chase and selecting an apropriate image from the list.
so this for all the chases.
12 2nd gobo wheel. same again for this one. starting at patern1 enter 10 as the dmx value and 1.bmp for the image.
13. save the fixture
14 import into Freestyler
15 test
Freestyler Addons www.120db.uk
Free Dropbox. 2GB account http://db.tt/J4c5G8C
$100 free credit @DigitalOcean Private Server: https://m.do.co/c/5c4a7c7d6693
Freestyler Android App: https://play.google.com/store/apps/deta ... rts.fs1024
Mavi
LJ
Posts: 267
Joined: March 30th, 2010, 1:19 am
FreeStyler Version: 3.2.8
I Use FreeStyler for: Just for the Fun of it.

Re: ADJ Electra LED DMX

Post by Mavi »

16. If everything works fine, upload the exportet fixture file to the "FreeStyler Fixture Files - User created Downloads" forum. So others looking for the same fixture file in the future can use it.
I know, my english is not the best. If you have any problem to understand you are welcome to give me englisch lessons
grinningdeamon
Knows how to turn Lights ON
Posts: 3
Joined: October 20th, 2010, 5:49 am
I Use FreeStyler for: Church

Re: ADJ Electra LED DMX

Post by grinningdeamon »

I just finished this fixture and posted it in the fixture forum:

http://www.freestylersupport.com/fsforu ... 327#p13779
