Stage Lights LED Mini Cob Par Light

Post by stemar24 »

Hello,
I need help with a fixture for the following LED Mini Cob Par Lights, I've tried using the Fixture Creator but fail.
If someone could help me with this or give me a tip which fixture might be similar... that would be great.

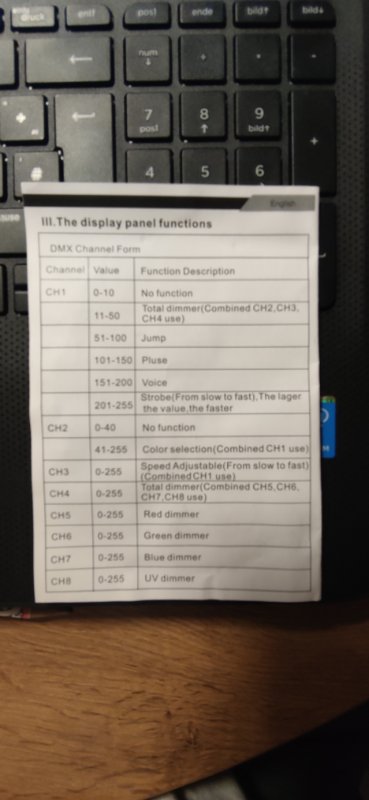

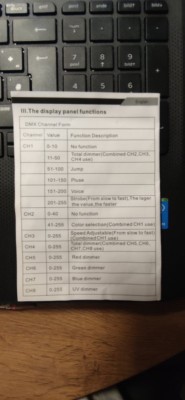

I think it's easy for someone experienced. the lamp has 8 channels attached photos of the manual.
Thanks!!!!!
:fs:
You do not have the required permissions to view the files attached to this post.
Last edited by stemar24 on 10 Feb 2023, 20:00, edited 2 times in total.


Top
Rod_Horning
Moderator
Posts: 851
Joined: 16 Nov 2016, 14:24
FreeStyler Version: 4.1.6
I Use FreeStyler for: Stage Show

Re: Stage Lights LED Mini Cob Par Light

Post by Rod_Horning »

What version of the Fixture Creator and Freestyler are you using? I am using the latest versions and I do not think that a fixture created with the latest versions (4.1.4 of Freestyler and 7.1.1 of Creator) will work with version 3 and lower of Freestyler.

Channel 1 has a setting labeled "Jump". I do not know what this means. Can you explain?

Channel 1 "Pulse" is probably Strobe.

Channel 2 apparently selects predefined colors. If so, these should be documented also. If the DMX values are known the the Color Wheel function of Freestyler can be used which makes programming a bit easier.

Please tell us the problems you encountered trying to create the fixture. If we can advise you then you will learn more about using the Fixture Creator and will not need to wait until one of us has time to create it for you.
Top
stemar24
Knows how to turn Lights ON
Posts: 3
Joined: 08 Feb 2023, 19:58
FreeStyler Version: 4.1.1
I Use FreeStyler for: Stage Show

Re: Stage Lights LED Mini Cob Par Light

Post by stemar24 »

Hi Rod, thanks for your reply and offered help.
I am using Freestyler 4.1.1 and also the latest Fixture Creator,
jump is a color change I assume.
I will try again tonight to create a fixture, with the help of explanation videos.
Top
Rod_Horning
Moderator
Posts: 851
Joined: 16 Nov 2016, 14:24
FreeStyler Version: 4.1.6
I Use FreeStyler for: Stage Show

Re: Stage Lights LED Mini Cob Par Light

Post by Rod_Horning »

OK. When you can please export the fixture and attached the exported file to this thread so that we can review it. Thank you
Top
stemar24
Knows how to turn Lights ON
Posts: 3
Joined: 08 Feb 2023, 19:58
FreeStyler Version: 4.1.1
I Use FreeStyler for: Stage Show

Re: Stage Lights LED Mini Cob Par Light

Post by stemar24 »

Hello Rod,

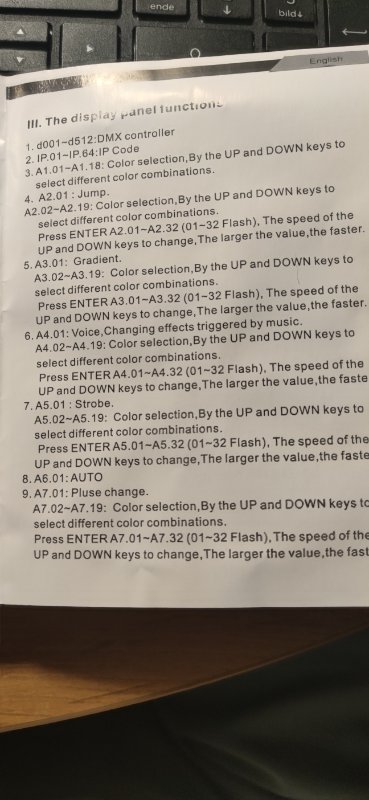

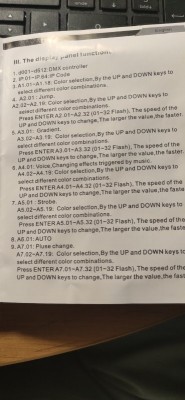

I have photographed another page, there you can use the panel to select the various functions. Jump is a hard color change and pulse is probably a smooth color transition
I hope you understand what I mean.
You do not have the required permissions to view the files attached to this post.
