Errormessage FixtureCreator - "Channel is higher than total channels"
Hi dear comrades-in-arms,
I have a strange message that "Channel is higher than total channels".

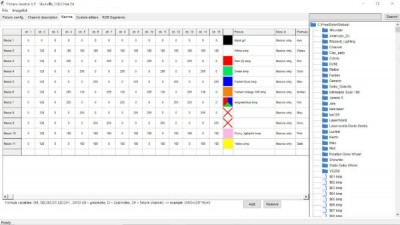

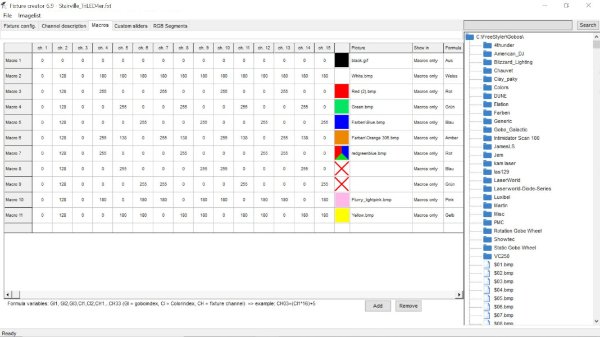

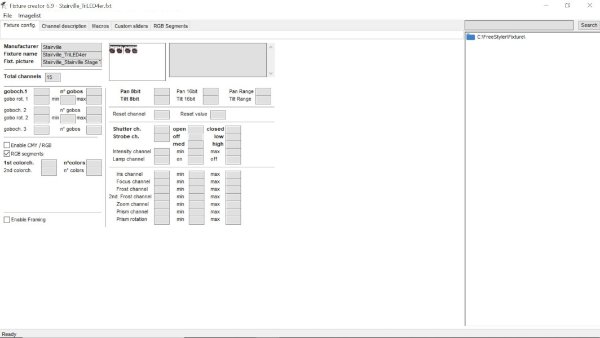

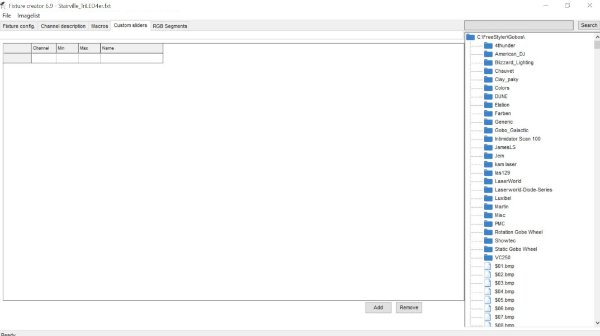

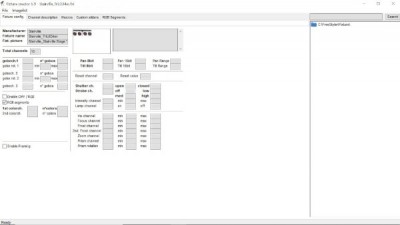

In the pictures you can look at the configuration.
I don't see any mistake.
Config pages - look attachements please!
Can someone help me?
Many thanks!
I have a strange message that "Channel is higher than total channels".
In the pictures you can look at the configuration.
I don't see any mistake.
Config pages - look attachements please!
Can someone help me?
Many thanks!
You do not have the required permissions to view the files attached to this post.
-
Mattotone
- Android Dev (Moderator)
- Posts: 1238
- Joined: 10 Jul 2007, 17:30
- FreeStyler Version: BETA
- I Use FreeStyler for: Just for the Fun of it.
Re: Errormessage FixtureCreator - "Channel is higher than total channels"
can you attach the fixture file?
Freestyler Addons www.120db.uk
Free Dropbox. 2GB account http://db.tt/J4c5G8C
$100 free credit @DigitalOcean Private Server: https://m.do.co/c/5c4a7c7d6693
Freestyler Android App: https://play.google.com/store/apps/deta ... rts.fs1024
Free Dropbox. 2GB account http://db.tt/J4c5G8C
$100 free credit @DigitalOcean Private Server: https://m.do.co/c/5c4a7c7d6693
Freestyler Android App: https://play.google.com/store/apps/deta ... rts.fs1024
-
Rod_Horning
- Moderator
- Posts: 836
- Joined: 16 Nov 2016, 14:24
- FreeStyler Version: 4.1.6
- I Use FreeStyler for: Stage Show
Re: Errormessage FixtureCreator - "Channel is higher than total channels"

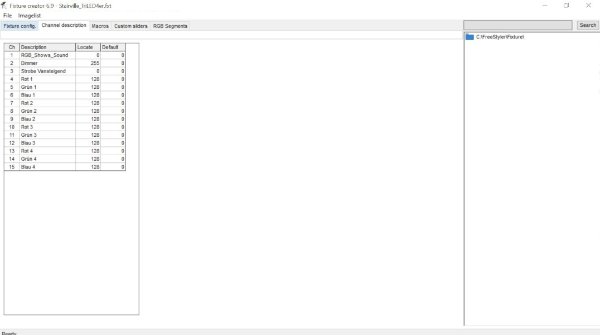

Your fixture requires 15 DMX channels. If you add it to Freestyler with a starting address higher than 240 I believe you will get this error.
-
Rod_Horning
- Moderator
- Posts: 836
- Joined: 16 Nov 2016, 14:24
- FreeStyler Version: 4.1.6
- I Use FreeStyler for: Stage Show
Re: Errormessage FixtureCreator - "Channel is higher than total channels"
My error. I reread your post.

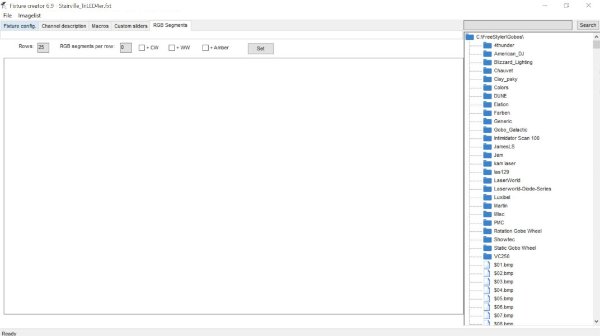

Looking at the pictures you uploaded, it looks like you have selected RGB segments. You specified 15 channels but in the segment definition it looks like (sorry, the pictures are fuzzy) you specified 25 rows with 0 segments. If this is the case then this may be your issue. Try either 4 rows with 1 segment per row or 1 row with 4 segments.
Edited to correct a couple of typing errors.
Looking at the pictures you uploaded, it looks like you have selected RGB segments. You specified 15 channels but in the segment definition it looks like (sorry, the pictures are fuzzy) you specified 25 rows with 0 segments. If this is the case then this may be your issue. Try either 4 rows with 1 segment per row or 1 row with 4 segments.
Edited to correct a couple of typing errors.
