Hello, i'm new to this.
So, my question is, how to control this 4 faders with a midi controller (numark toal control)
thanks
Control FreeStyler with a Midi Controller (HELP)
-
- Knows how to turn Lights ON
- Posts: 3
- Joined: June 30th, 2010, 7:45 pm
- FreeStyler Version: New
Control FreeStyler with a Midi Controller (HELP)
You do not have the required permissions to view the files attached to this post.
- LJ_krede.dk
- Moderator
- Posts: 1028
- Joined: October 29th, 2007, 8:01 pm
- FreeStyler Version: 3.3.7
- I Use FreeStyler for: Where do I start?
Re: Control FreeStyler with a Midi Controller (HELP)
there is two ways to do this what i can think of.
1) Use MIDI to DMX to assign faders to the DMX addresses you have the fixture on
2) Edit the fixture file so the attributes for the fixtures is assigned to attributes which can be controlled from the MIDI controller
for example i would change this is the fixture file:I
Set the Mode channel as intensity channel
set the gobo channel at goboch. 1
set the animation channel at goboch. 2
set the speed channel as strobe ch
then assign intensity, gobo ch 1 and 2 and the strobe ch to faders/knobes on your midi controller
1) Use MIDI to DMX to assign faders to the DMX addresses you have the fixture on
2) Edit the fixture file so the attributes for the fixtures is assigned to attributes which can be controlled from the MIDI controller
for example i would change this is the fixture file:I
Set the Mode channel as intensity channel
set the gobo channel at goboch. 1
set the animation channel at goboch. 2
set the speed channel as strobe ch
then assign intensity, gobo ch 1 and 2 and the strobe ch to faders/knobes on your midi controller
/LJ_krede.dk
Aalborg, Denmark
Moderator, Supporter and Bug report manager for the FreeStyler community
Found a bug? Submit a Bug Report
Aalborg, Denmark
Moderator, Supporter and Bug report manager for the FreeStyler community
Found a bug? Submit a Bug Report
-
- Knows how to turn Lights ON
- Posts: 3
- Joined: June 30th, 2010, 7:45 pm
- FreeStyler Version: New
Re: Control FreeStyler with a Midi Controller (HELP)
At 1)

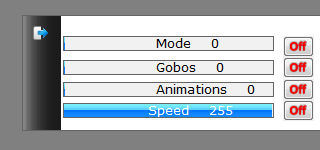

All 4 Faders can controlled, BUT only the Mode Channel -.-
2)
I can't control anything, what do u mean set attributes?

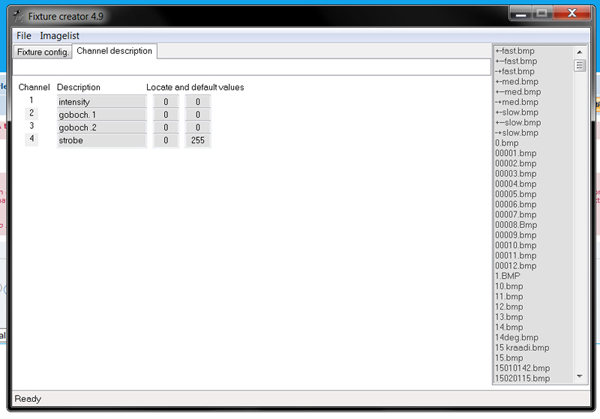

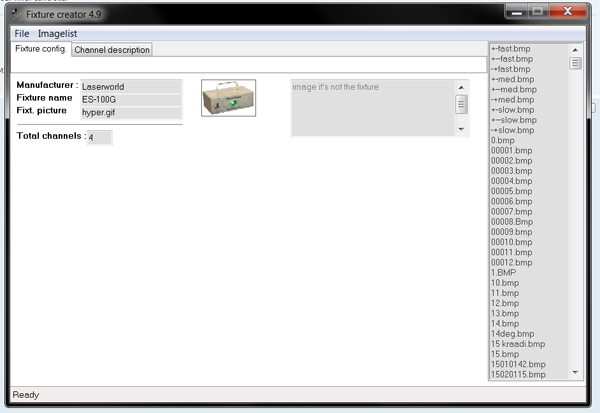

here my fixture :
All 4 Faders can controlled, BUT only the Mode Channel -.-
2)
I can't control anything, what do u mean set attributes?
here my fixture :
You do not have the required permissions to view the files attached to this post.
- remco_k
- Moderator
- Posts: 1233
- Joined: October 12th, 2008, 11:27 pm
- FreeStyler Version: N/A
- I Use FreeStyler for: To help others here on the Forum!
Re: Control FreeStyler with a Midi Controller (HELP)
Job done.mmax wrote: Admins/Mods: please move topic to External Control forum.
Developer of the Sound 2 Light application (SL.exe) for FreeStyler: https://www.digiplay.nl/fs
Electronics runs on magic smoke. If it escapes, the electronics won't work anymore!
Need a SHOUTcast stream?: https://www.digiplay.nl
Electronics runs on magic smoke. If it escapes, the electronics won't work anymore!
Need a SHOUTcast stream?: https://www.digiplay.nl
-
- Knows how to turn Lights ON
- Posts: 3
- Joined: June 30th, 2010, 7:45 pm
- FreeStyler Version: New
Re: Control FreeStyler with a Midi Controller (HELP)
Thanks it works, i love it
