Chauvet Gigbar Move help
hello, I'm looking for someone to help me create a fixture for the material from Chauvet (Gigbar move) in 35 caneau. way too complicated for me. that will be really nice. I link the notice. (sorry for my english, i'm french
-
Dennis ray
- Knows how to turn Lights ON
- Posts: 2
- Joined: 03 Sep 2021, 09:42
- FreeStyler Version: X2
- I Use FreeStyler for: DJ
-
Nathanrs93
- Moderator
- Posts: 950
- Joined: 18 Sep 2012, 21:32
- FreeStyler Version: None
- I Use FreeStyler for: To help others here on the Forum!
Re: Chauvet Gigbar Move help
I'm pretty sure there's one of these in the library. Make sure you are up to date.
If not, I'll have a go tomorrow evening for you and see what I can do.
If not, I'll have a go tomorrow evening for you and see what I can do.
-
wozz1820
- Knows how to turn Lights ON
- Posts: 3
- Joined: 15 Aug 2012, 21:55
- FreeStyler Version: 512
- I Use FreeStyler for: DJ
Re: Chauvet Gigbar Move help
did anyone ever find a file for gigbar move
-
DrBreak
- Knows how to turn Lights ON
- Posts: 6
- Joined: 25 Oct 2021, 22:30
- FreeStyler Version: 4.1.1
- I Use FreeStyler for: Just for the Fun of it.
Re: Chauvet Gigbar Move help
Fixture Creator isn't really built for multibar's, unless you want the moving heads/gobos to always move as one.
You'd want to create a single fixture for Derby, Moving Head, Par, laser, strobe, then Import them to the stage in grouped pairs to recreate what you have.
You'd want to create a single fixture for Derby, Moving Head, Par, laser, strobe, then Import them to the stage in grouped pairs to recreate what you have.
Last edited by DrBreak on 05 Nov 2021, 12:51, edited 1 time in total.
-
DrBreak
- Knows how to turn Lights ON
- Posts: 6
- Joined: 25 Oct 2021, 22:30
- FreeStyler Version: 4.1.1
- I Use FreeStyler for: Just for the Fun of it.
Re: Chauvet Gigbar Move help
Ok, so I have created the 5 fixtures needed.
To Install open the zip and copy the 4 folders to your C:\Program Files\Freestyler\ directory
It will warn you of over-writing folders, say yes.
This will add
1 \Location (open in freestyler, contains a set of 8 GigBar Move lights set to DMX CH1)
Some laser icons needed into the Gobos\Chauvet DJ folder
The .fft fixtures and images to \Fixtures
The .pff fixtures in the \Import folder
This only works if your GigBar Move is set to 35CH DMX mode (Page 15 of your manual or page 21 in the pdf https://www.chauvetdj.com/wp-content/up ... 1-9-20.pdf)
The moving head Gobo's & Colours are not mentioned in the manual, so random ones have been chosen. I do not have this light to test any of this with.
If you don't add the fixtures in the right consecutive order it won't work.
DMX Fixture
01 Par 1 (Start DMX Channel)
06 Par 2 (Start CH + 5)
11 Derby 1 (Start CH + 10)
14 Derby 2 (Start CH + 13)
17 Laser (Start CH + 16)
20 Strobe (Start CH + 19)
24 Moving Head 1 (Start CH + 23)
30 Moving Head 2 (Start CH + 29)

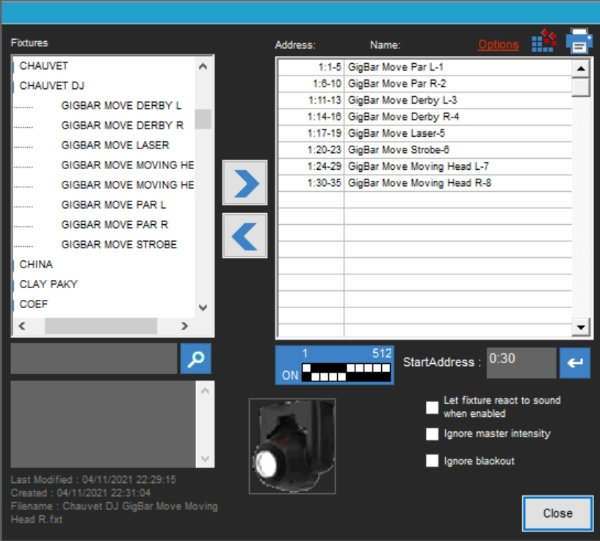

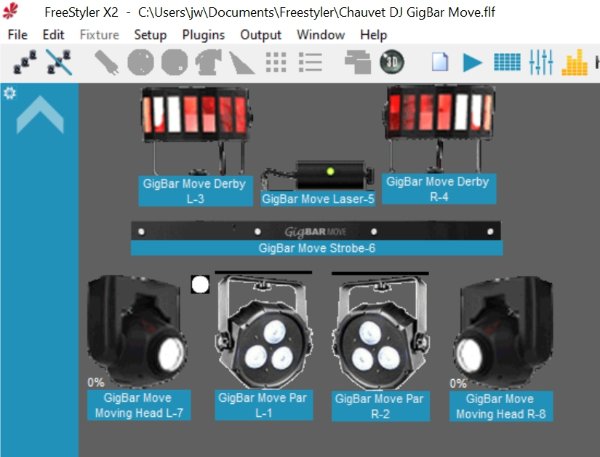

The below image shows how it should look in 'Add Fixture' and the location file in freestyler. Both images are inside the zip and are not needed by freestyler.
To Install open the zip and copy the 4 folders to your C:\Program Files\Freestyler\ directory
It will warn you of over-writing folders, say yes.
This will add
1 \Location (open in freestyler, contains a set of 8 GigBar Move lights set to DMX CH1)
Some laser icons needed into the Gobos\Chauvet DJ folder
The .fft fixtures and images to \Fixtures
The .pff fixtures in the \Import folder
This only works if your GigBar Move is set to 35CH DMX mode (Page 15 of your manual or page 21 in the pdf https://www.chauvetdj.com/wp-content/up ... 1-9-20.pdf)
The moving head Gobo's & Colours are not mentioned in the manual, so random ones have been chosen. I do not have this light to test any of this with.
If you don't add the fixtures in the right consecutive order it won't work.
DMX Fixture
01 Par 1 (Start DMX Channel)
06 Par 2 (Start CH + 5)
11 Derby 1 (Start CH + 10)
14 Derby 2 (Start CH + 13)
17 Laser (Start CH + 16)
20 Strobe (Start CH + 19)
24 Moving Head 1 (Start CH + 23)
30 Moving Head 2 (Start CH + 29)
The below image shows how it should look in 'Add Fixture' and the location file in freestyler. Both images are inside the zip and are not needed by freestyler.
You do not have the required permissions to view the files attached to this post.
-
wozz1820
- Knows how to turn Lights ON
- Posts: 3
- Joined: 15 Aug 2012, 21:55
- FreeStyler Version: 512
- I Use FreeStyler for: DJ
Re: Chauvet Gigbar Move help
thank you sorry it took so long to thank you i was sick and havent been on
