Xone K2 problems Topic is solved

[robdquick]

Hi,

I have just bought myself a Xone K2 to control freestyler. Setting up the faders/pots to control submaster intensity/cue speepd works fine, however I cannot get any of the buttons to work at all. The code shows up in the midi panel when I 'learn' a button to a function, but it doesn't do anything in the actual program.

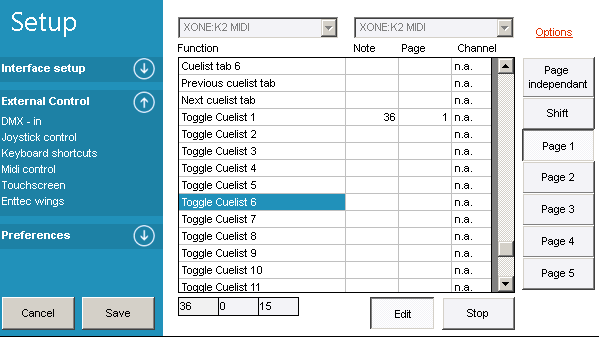

For example, I want to set a button to activate a cuelist button. This is what shows up in freestyler when I press the button:


But when I go back to freestyler, pressing the button doesn't activate the cuelist. I know the midi control is working because if I assign it to an encoder it works, so it seems to be specific to the buttons.

Here is the output from Midi-OX when I press and release the button:

TIMESTAMP IN PORT STATUS DATA1 DATA2 CHAN NOTE EVENT
0000602F 1 -- 9E 24 7F 15 C 2 Note On
000060C4 1 -- 8E 24 00 15 C 2 Note Off

I've tried activating all of the options in the options in the midi panel. but none of them seem to work.

Anybody got any ideas??

[robdquick]

Ok, solved the problem. Buttons don't send out CC messages, only note on/off. Using Bome's Midi Translator classic to convert the note on/off to a CC makes it work.
