ADJ nucleus file around?

[haxxorz]

Hi there, since its a rather complicated fixture, and i havent made any myself yet.
I was wondering does anyone have a file for the nucleus LED from american dj?

google didnt give me any solutions


thanks in advance

[mcneiltny]

im looking for the same file

[Jan_K]

Hej guys

It is not that difficult. Actually it is easy but it takes time to do all the colors.

Her is an example and all the information you need is there.

http://www.freestylersupport.com/wiki/f ... ter_effect

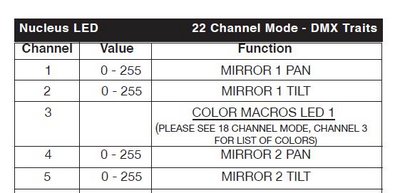

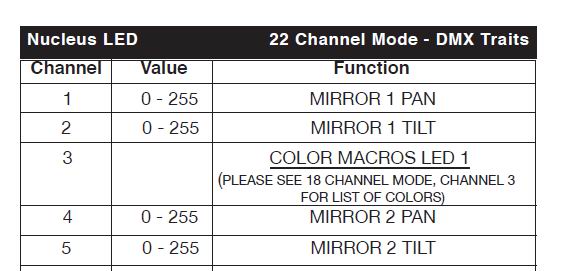

I guess that you want to use it in 22 ch mode.

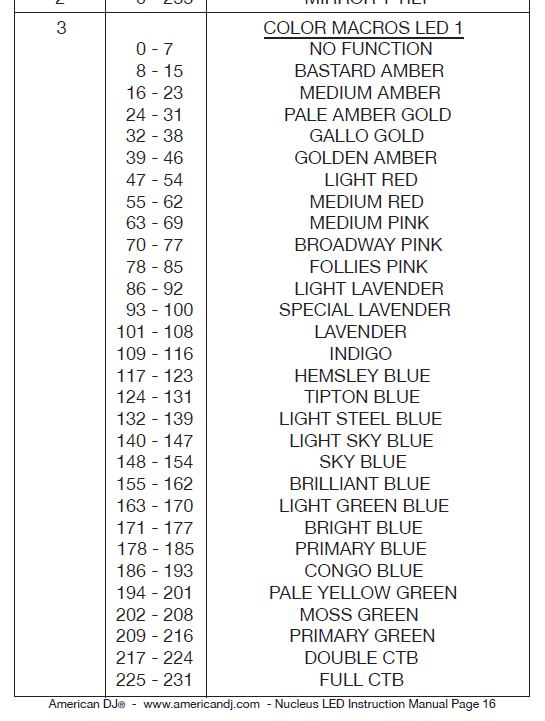

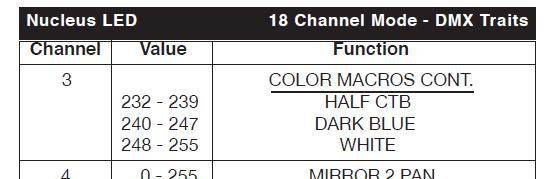

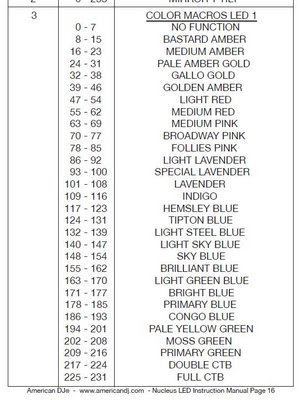

You need to make a 3 channel scanner with Pan,Tilt, and color control, think 33 colors if I counted correct.

Then you need to make a 4 ch gerenal control containing "Pan and Tilt movement", "Pan and Tilt Speed", "Color Macro" and "Color Macro speed"
If I was to do this fixture I would use Gobo control for this function then the rotation fader could be used for speed control.

Finally you have to import 6 x scanner control and one of the general control in freestyler and you are up running.
It is all in the example.

When you have made the fixtures then export it and post it here then I will have a look on it.
Also if there is anything you don't understand in the example place a note here so we can get it more readble.

Have fun.

/Jan

[Jan_K]

Just for the fun of it and as appetizer.

Here are the control section. (Not tested)

AmericanDJ_Nucleus_Ctrl.pff

In 4 Channal mode this fixture are to be used alone.

In 22 cahnnel mode it is to be placed as no 7.
Adr 1 - 3 Scanner fixture 1
Adr 4 - 6 Scanner fixture 2
Adr 7 - 9 Scanner fixture 3
Adr 10 - 12 Scanner fixture 4
Adr 13 - 15 Scanner fixture 5
Adr 16 - 18 Scanner fixture 6
Adr 19 - 22 Control fixture


Now you just need to make the scanner fixture.

If you need colors then have a look Test_icon2.
http://www.freestylersupport.com/fsforu ... 201#p15201

Have fun.

[mcneiltny]

thinks so much im new with fs and I dont get it yet i

[Jan_K]

There is only one way.

You have to learn this.
It is essential to know / learn how to make fixtures and it is easy.

You are to create a scanner and it only has to control 3 channels

Open the fixture creator in scanner mode.

You then have to enter names in the header, select images.
Total channel no is 3.
You are to enter Pan and Tilt channel no.
And you are to define a color wheel with 33 colors. I dosen't matter if the colors are wrong.

That is all.
You can do that and you will learn "my young padawan"

When you post your solution then I will post mine and we can compare.




/Jan

[Jan_K]

If you haven't found it yet then have a look here.

http://www.freestylersupport.com/fsforu ... =60&t=3972



/Jan
