hello together,

I'm new here and have a question.

I
2x GLP Pocket Scan DMX
2x Revo 3 DMX
2x Pro lightmaXX SRL-562 Strobe DMX
2x srl-439 dmx Double Derby
1x Antari Z-1200

These devices also work very well with freestylers.

I have 2 x Elation Prob bar 4 how can I use these in the freestyler?

Thanks for your help

Lemy

Hi Lemy and welcome to the FS forum.

lemysys wrote: I have 2 x Elation Pro bar 4 how can I use these in the freestyler?

I have four of these myself if you are thinking of this one (just with IEC output for each Channel in stead of Two three prong Edison sockets per channel):

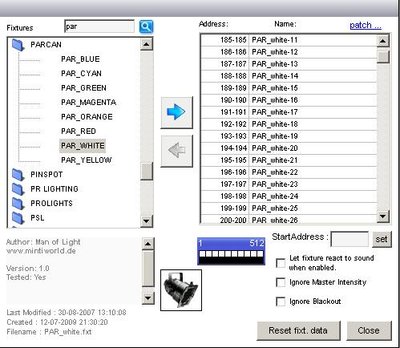

There is several ways you can control them in FS. What i do is to patch each DMX channel from the bars to par cans fixture in Freestyler:

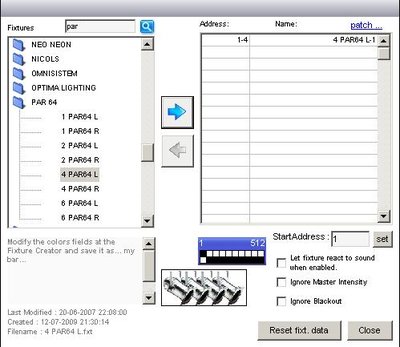

Freestyler also have a fixture for 4 par cans you can use instead:
(Remark: The pictures of "Add/Remove fixture" windows differ from Freestyler 3.0.1 because I have a beta version, but works the same)

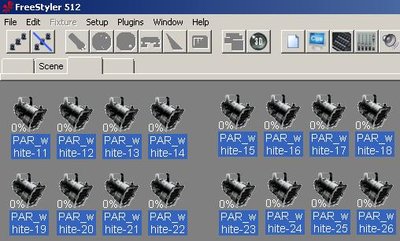

I like to patch each dmx channel to a fixture in freestyler because you then can use the FX generator and i can control each selected DMX channel from my MIDI controller.

Hope that gives you a clue how to control the Pro Bars. Otherwise ask again.

Hi LJ,

Thank you for your help it works.

What has struck me that if I speak to the right bars, because I can not define macros, which still seems to a bug.

have nice day lemy

lemysys wrote:Hi LJ,

Thank you for your help it works.

I'm glad i could help

What has struck me that if I speak to the right bars, because I can not define macros, which still seems to a bug.

I'm not sure what you mean?
