UKing Moving Head Spots 60W RGBW (Strobe Issues)

Fixture File Help & Support, This is not a Request forum we are here to help you not work for you... If you do need a fixture and don't wish to make one yourself or learn then go here : http://www.freestylersupport.com/wiki/f ... on_service
Forum rules
This forum is designed for you to get HELP with building fixtures, Please make an attempt if you get stuck YOU must upload your partial fixture file (as an exported fixture file) so we can point you in the right direction if you don't do this you won't LEARN and if you don't learn you will may never be able to get the fixtures you require. It is Very hard to make fixtures for people when we don't have the same light at hand to test it with after all having the light in front of you makes programing so much easier! That's why we will help but rarely build any fixtures for you. You Alone are the best person to build your fixtures if you need help ask if you want it building for you Don't....
or alternativaly if your willing to pay for fixtures to be created then go here : http://www.freestylersupport.com/wiki/f ... on_service

You can Upload your fixtures as attachments to your posts so there is no need to supply email details Please post any fixtures in the download forum if you require help please contact an Admin/Moderator.
Post Reply
AdamDShort
Knows how to turn Lights ON
Posts: 2
Joined: 30 Aug 2020, 06:33
FreeStyler Version: 4.0.0
I Use FreeStyler for: Just for the Fun of it.

UKing Moving Head Spots 60W RGBW (Strobe Issues)

Post by AdamDShort »

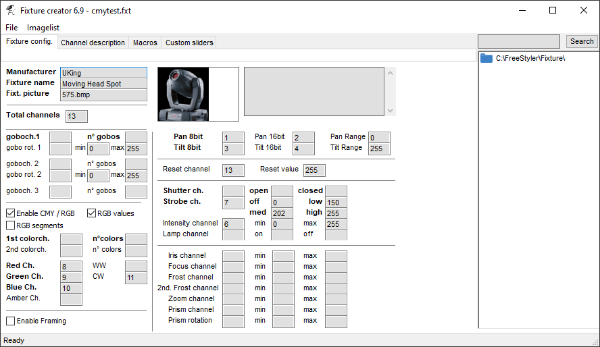

I really hope I am in the right place. Just started to learn Freestyler and DMX512 in general. Bought some cheap moving head spots from Amazon, obviously no native support :) Have the manual and channel map, done a couple of Freestyler tutorials added a new fixture based on existing similar fixture then modified the settings to suit. All went well and most features are working fine. However the "RESET" feature isn't resetting and the strobe feature isn't un-strobing when the slider set to 0 (<150).

I have exported and attached the PFF file if someone would like to take a look and let me know how I have gone wrong? Eager to learn hence taking the long way around and building from scratch. :)
UKing Moving Head Spot.pff
Ver: 4.0.0
You do not have the required permissions to view the files attached to this post.


Top
AdamDShort
Knows how to turn Lights ON
Posts: 2
Joined: 30 Aug 2020, 06:33
FreeStyler Version: 4.0.0
I Use FreeStyler for: Just for the Fun of it.

Re: UKing Moving Head Spots 60W RGBW (Strobe Issues)

Post by AdamDShort »

NAILED IT!

So here goes, two new fixtures for you all! Especially useful if you have just bought some cheap lights from Amazon!

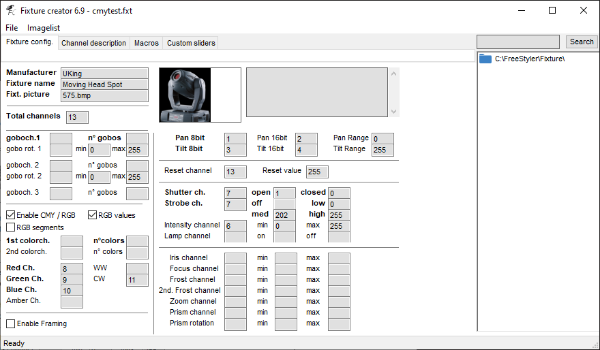

UKing 60W RGBW Moving Head Spot

https://www.amazon.co.uk/gp/product/B07 ... UTF8&psc=1

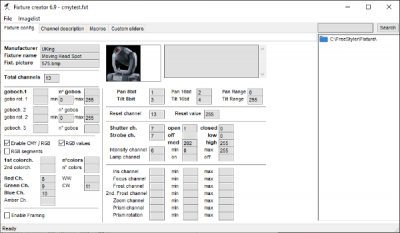

UKing 60W RGBW Moving Head Spot.png

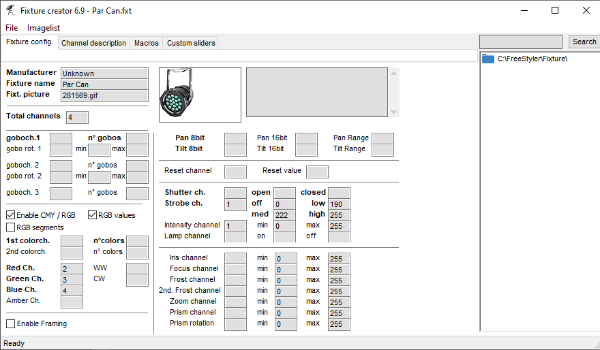

And as a bonus...some cheapo OrangeA RGB Par Cans

https://www.amazon.co.uk/gp/product/B01 ... UTF8&psc=1

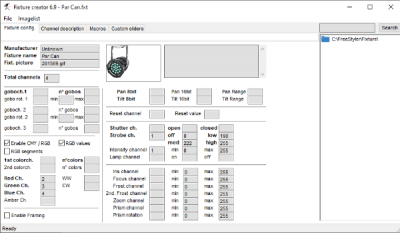

OrangeA RGB Par Cans.png
You do not have the required permissions to view the files attached to this post.
