Align Moving Heads to Pan/Tilt window (Square)

Post by Goochie »

Hi, Ive been using FS for a while now and one problem keeps arising.
I have done lots of programs with moving heads but I have to set up lights every time because I cannot align them using 3D visualaliser.
the problem is this..
I mount lights on truss (Robe's & ADJ Inno's moving heads, with display in front, cables coming out of rear) then in movement window I have to use top right quater of that window to arrange movements (Out front onto audience, dance floor) and have to centre the beams by eye every time. I noticed that if I mount Lights turned 90 degrees then I can use central thick black lines on movement window (Cross hairs) and beams are perfectly central every time along those cross hair lines.
So my question is this.. Can I adjust lights or movement window somewhere in settings to arrange beams along those central cross hairs without mounting fixtures at 90 degree angle on truss, as this means all cables are visable and would be a pain to hide from audience.?

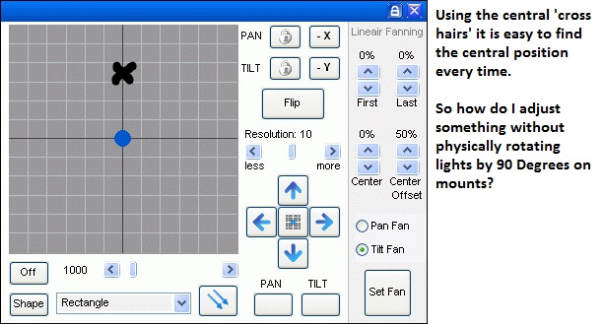

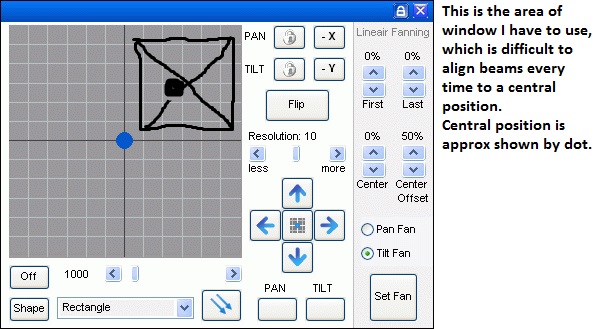

I have attached two pictures that will hopefully explain better..
Any and all help is much appreciated.
Thank you all.
Movement window 2.jpg
Movement window 1.jpg
You do not have the required permissions to view the files attached to this post.



User avatar
fladderaar
Knows how to turn Lights ON
Posts: 4
Joined: December 19th, 2014, 4:42 pm
FreeStyler Version: x2
I Use FreeStyler for: DJ
Location: Utreg

Re: Align Moving Heads to Pan/Tilt window (Square)

Post by fladderaar »

I have the same problem.

It would be great to have a solution for that!

Greets Frank

Goochie
Possibly Becoming Qualified FS User
Posts: 56
Joined: February 11th, 2009, 4:42 pm
FreeStyler Version: 3.5.5
I Use FreeStyler for: DJ
Location: Devon, UK
Contact:

Re: Align Moving Heads to Pan/Tilt window (Square)

Post by Goochie »

Yeah its a real pain in the Ass Frank.
There must be a simple solution somewhere without re-mounting the moving heads???

DJDaveSA
Possibly Becoming Qualified FS User
Posts: 43
Joined: March 11th, 2011, 10:57 am
FreeStyler Version: 3.6
I Use FreeStyler for: DJ

Re: Align Moving Heads to Pan/Tilt window (Square)

Post by DJDaveSA »

You could just rotate them in visualiser?

Goochie
Possibly Becoming Qualified FS User
Posts: 56
Joined: February 11th, 2009, 4:42 pm
FreeStyler Version: 3.5.5
I Use FreeStyler for: DJ
Location: Devon, UK
Contact:

Re: Align Moving Heads to Pan/Tilt window (Square)

Post by Goochie »

Yes I have done that Dave, but still have the same problem in the Pan/tilt window, lights are not centralised along the cross hairs. They still operate in top right corner of pan/tilt window and I have to do everything by eye and not use the guide lines for dead straight up/down movements.
Last edited by Goochie on February 26th, 2016, 1:55 pm, edited 1 time in total.

Goochie
Possibly Becoming Qualified FS User
Posts: 56
Joined: February 11th, 2009, 4:42 pm
FreeStyler Version: 3.5.5
I Use FreeStyler for: DJ
Location: Devon, UK
Contact:

Re: Align Moving Heads to Pan/Tilt window (Square)

Post by Goochie »

Hope this Pic expains it a little easier. I have same problem with Both the Robe's and the ADJ Inno Spot LED's.


Goochie
Possibly Becoming Qualified FS User
Posts: 56
Joined: February 11th, 2009, 4:42 pm
FreeStyler Version: 3.5.5
I Use FreeStyler for: DJ
Location: Devon, UK
Contact:

Re: Align Moving Heads to Pan/Tilt window (Square)

Post by Goochie »

Just a thought, I have had to rotate lights on Visualiser by 27 degrees to get them to align with Pan/Tilt window.
Would that mean that the settings in pan/tilt window is 'out' by 27 degrees?

Fusion80
Knows how to turn Lights ON
Posts: 2
Joined: September 24th, 2019, 4:35 am
FreeStyler Version: 3.6.50
I Use FreeStyler for: Where do I start?

Re: Align Moving Heads to Pan/Tilt window (Square)

Post by Fusion80 »

I have the same problem too, I've have not yet found a solution . The first day I got my lights, I noticed that when I turned my lights 90° it all aligns. Not sure why this is, but it is.

Partyman
FS is my life
Posts: 570
Joined: July 11th, 2007, 8:39 pm
FreeStyler Version: 364
I Use FreeStyler for: Nightclub Lighting
Twitter: twitter.com/
Contact:

Re: Align Moving Heads to Pan/Tilt window (Square)

Post by Partyman »

You can adjust them to start where you like with the menu on the light itself. Each light should have have pan and tilt adjustments in the menu allowing for correction
