Fixture Creator - Fogger tutorial

Fog machines normally comes with one or two DMX channels control.

This makes it simple to config a fixture in “Fixture Creator”.

In this example a JEM Roadie X-Stream is used.

Before starting to make the fixture there are some things that are to be prepared.

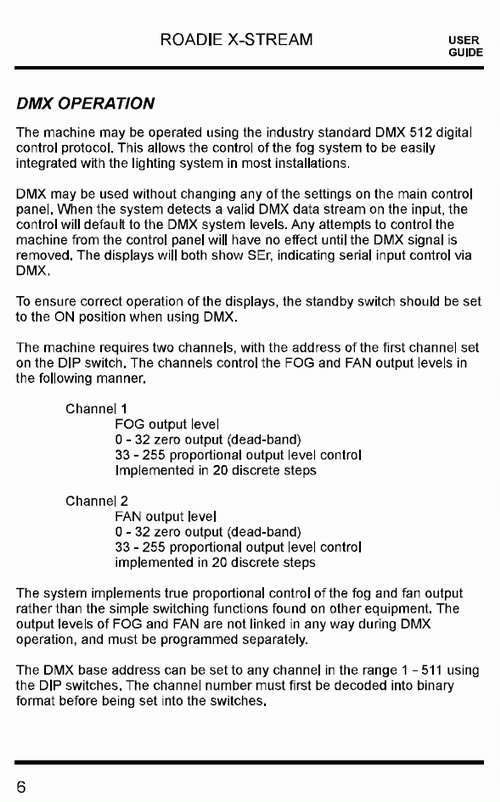

Find the DMX table and a Fixture picture.

See Link Fixture Creator - Before making a fixture.
See Link Fixture Creator - Pictures and Icons





Open Fixture Creator

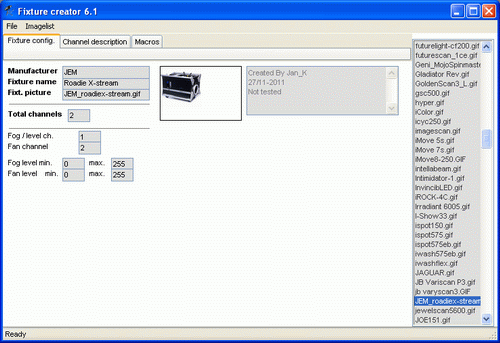

Open “Fixture Creator” in Fogger, Hazer mode.



Add manufacture name (Remember to spell correct), give the fixture a proper name, add picture and fill in info in the text box.
Set the total channels to 2, in this case the fixture occupies 2 DMX channel.
Set the Fog and Fan channel. In the DMX table channel 1 is Fog level and Channel 2 is Fan control.
Set the Min and Max values for the two channels here 0 and 255.

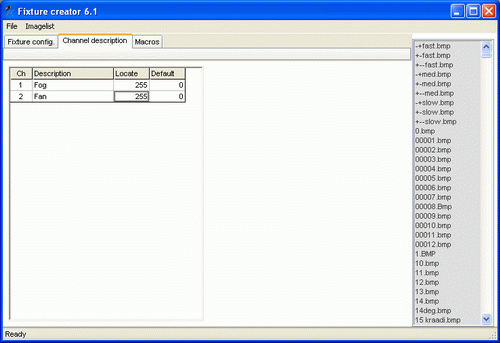

Channel Description.


It may look like a minor thing to enter the Channel description and the default and locate value but this is what makes the fixture proff.
Here 0 is selected to default because it is then default off.
Locate is set to 255, Full on.



Fixture Creator - Channel Description

Remember to save the fixture follow the name convention. Fixture Creator - File Name Convention

Also remember when you have created a fixture then export it and upload it in the forum

http://www.freestylersupport.com/wiki/extrafiles/JEM_Roadie%20X-stream.pff

Fog Panel



In FreeStyler the Fog panel will then look like this.



Panel Description - Fog / Smoke Panel
